AllPondSolutions 18000L Koi Triple Box Pond Filter System

Large Koi ponds fail on filtration capacity long before they fail on anything else. The AllPondSolutions 18000L Koi Pond Filter System is sized for that problem: a complete box filtration system running pond water through a variety of filter media plus fine and coarse foam to keep the pond looking crystal clear.

Filter Operation

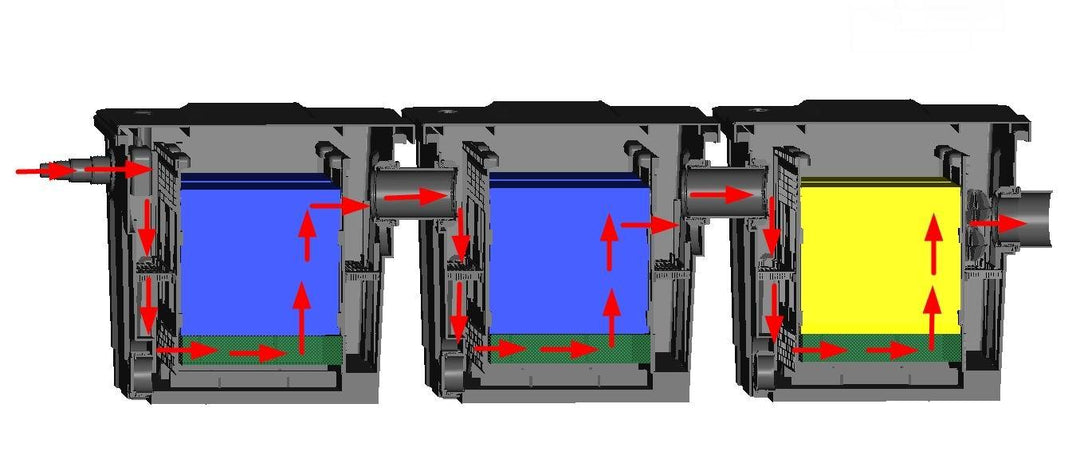

Filter media is distributed amongst three separate bays, which is what allows the system to process high volumes of water.

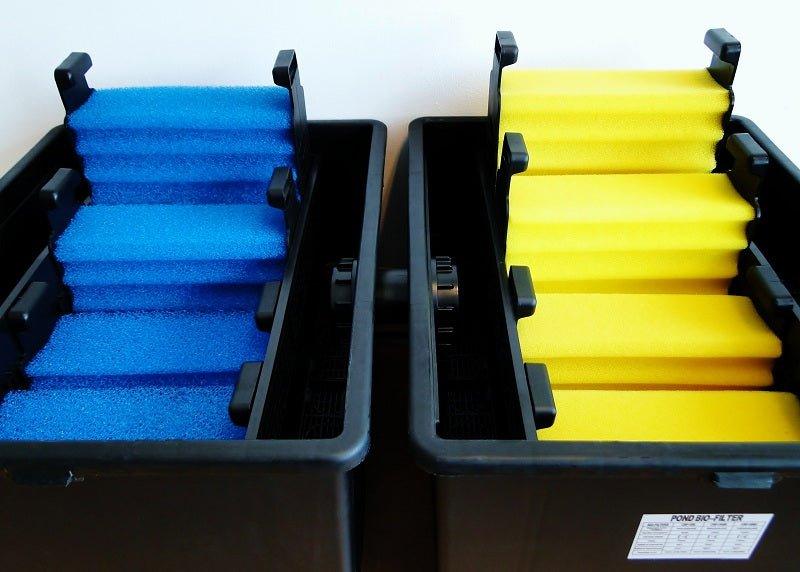

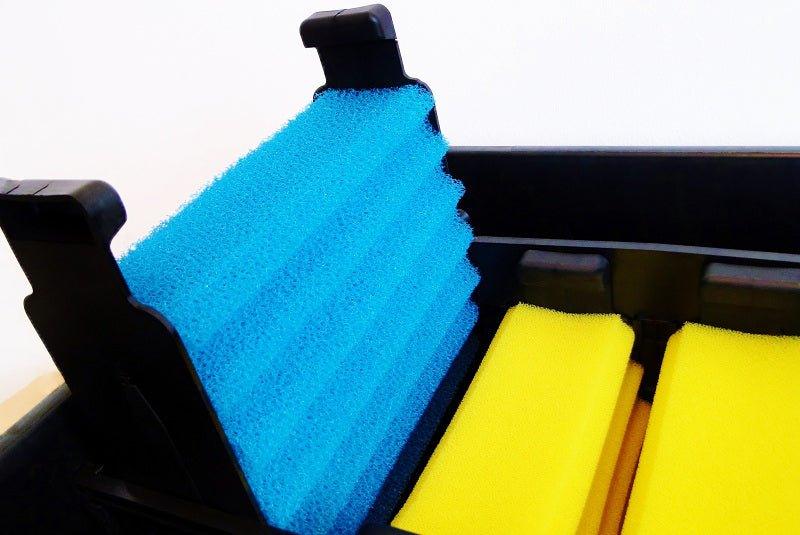

Each of the 3 bay's has 4 different stages of filtration (see below). The first two bays come complete with eight (8) Blue Coarse Filter Foam's, the remaining bay has four (4) Yellow Fine Filter Foam's included.

1. Firstly, the water passes through the filter media bay (stocked with media of your choice)

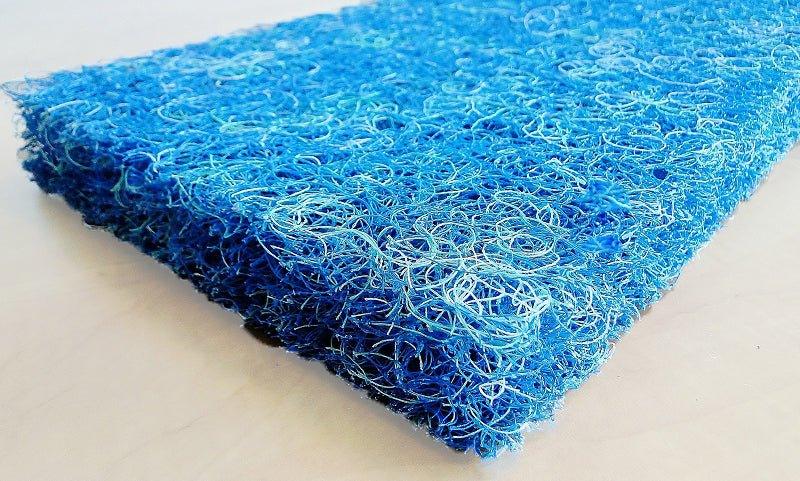

2. Then the water is guided through high-quality Japanese matting;

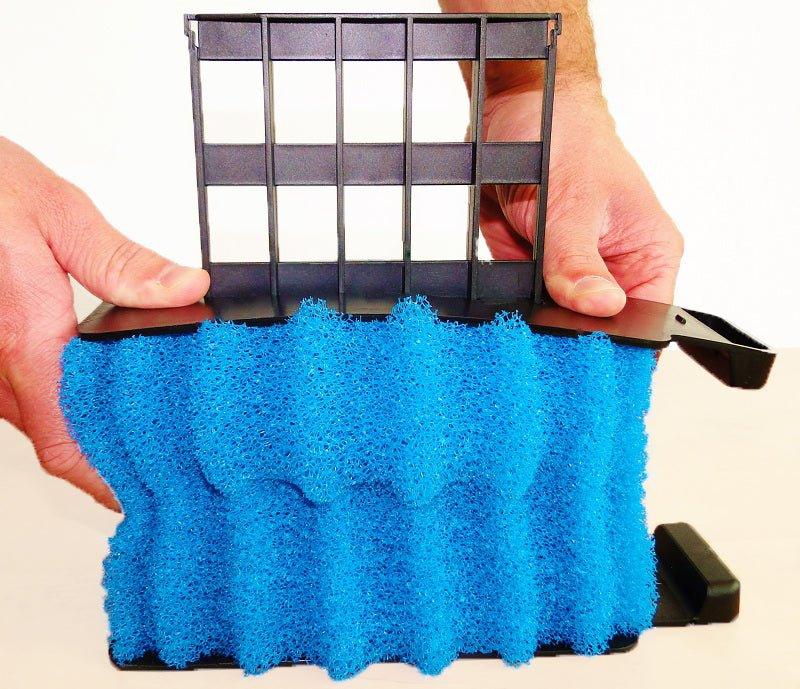

3. After matting, the water will flow through the filter foams provided;
4. The last section of each filter bay has additional room for filter media.

Please note the filter must be placed on the edge of the pond as the clean water flows straight back into the pond not an outlet pipe

An additional cleaning tool comes with this model, letting you rinse the foams through without lifting them out of the filter box at all.

• Filter Bays x 3

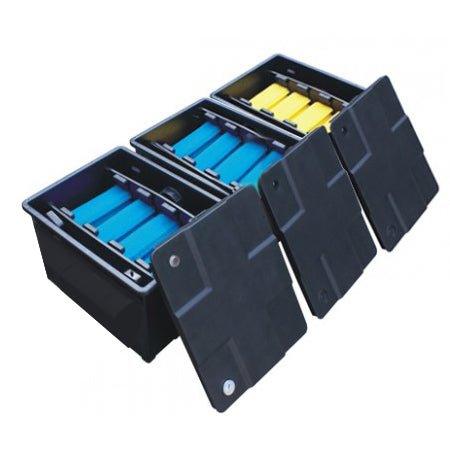

• Clip-on Lids x 3 for Easy Access to each Filter Bay

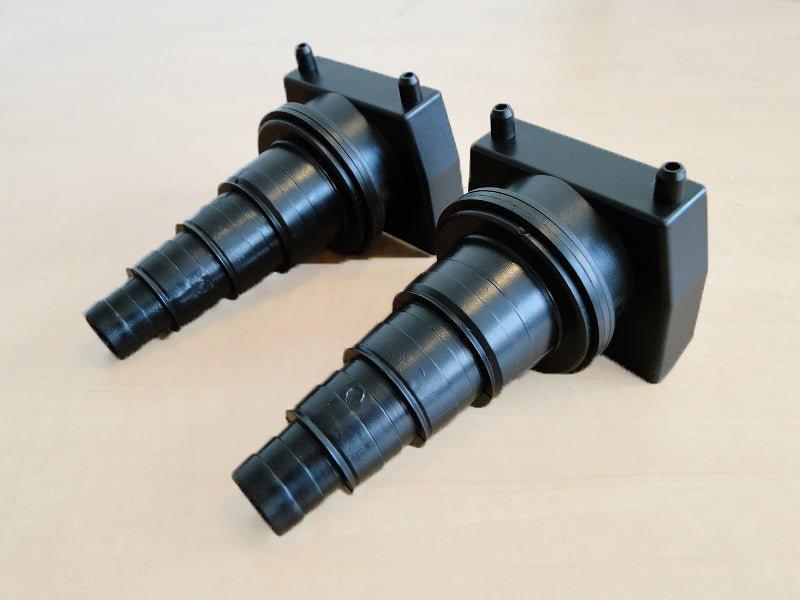

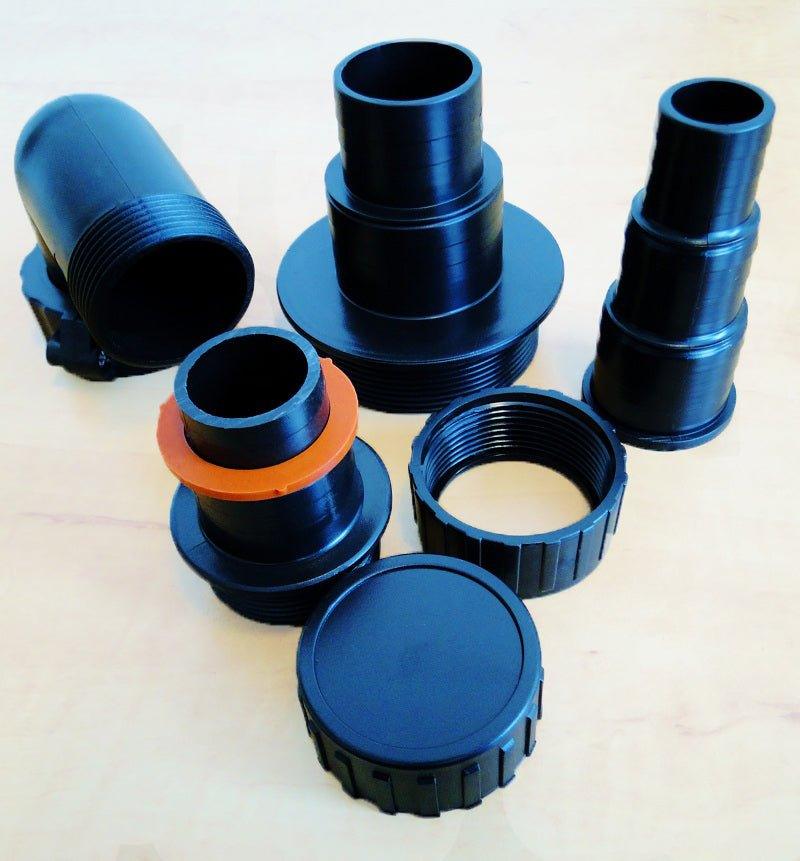

• 2 x Inlet stepped hosetails fits hose size: 20, 25, 32 & 38mm

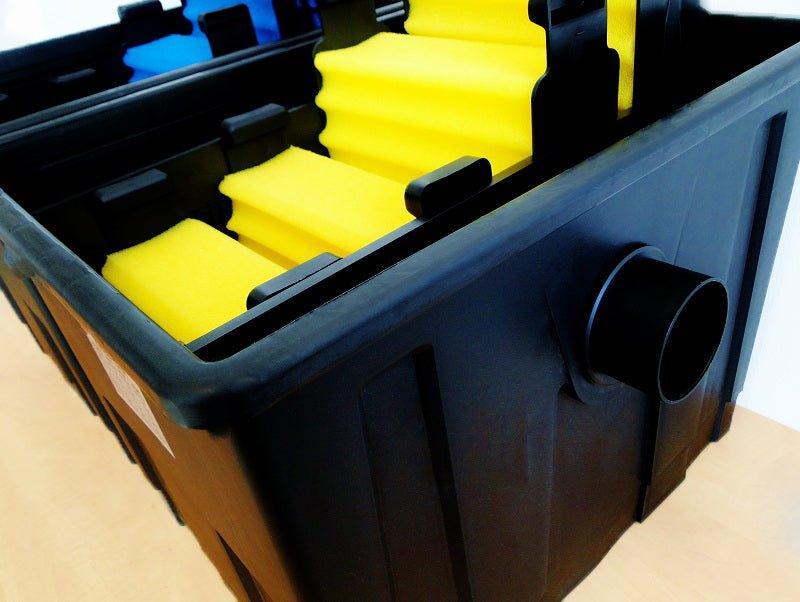

• 2 x Outlet Pipes one fitted 70mm and 1 stepped fits 38mm and 50mm Pipe
• 3 x Waste Outlet for each Bay (Simple Draining of Water Waste)
• 1 x Temperature Dial Built into Lid
• 1 x Water Level Indicator Built into Lid (Blockage / Cleaning)
• 8 x Blue Coarse Filter Foams
• 4 x Yellow Fine Filter Foams

*Please note, UV steriliser attachment not supplied - available separately in store.
