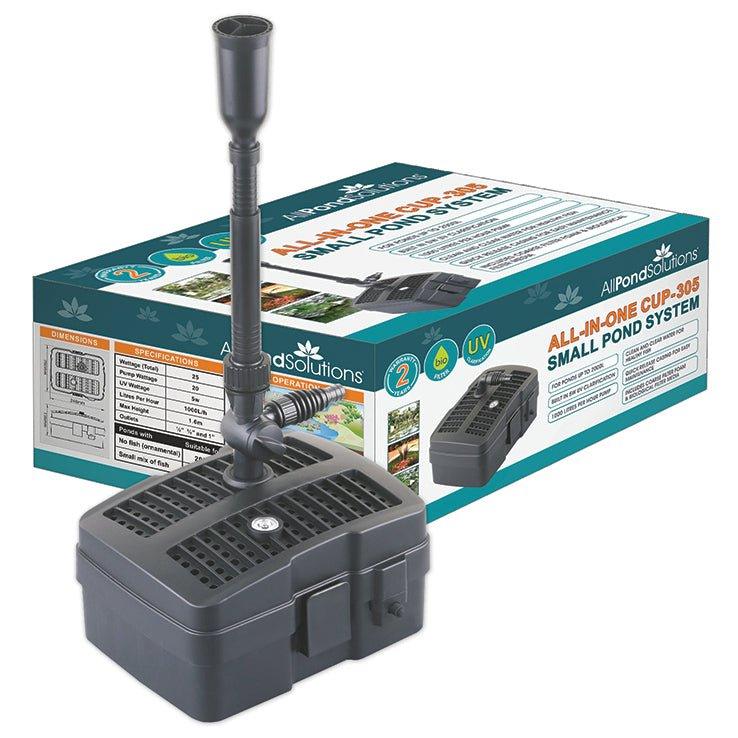

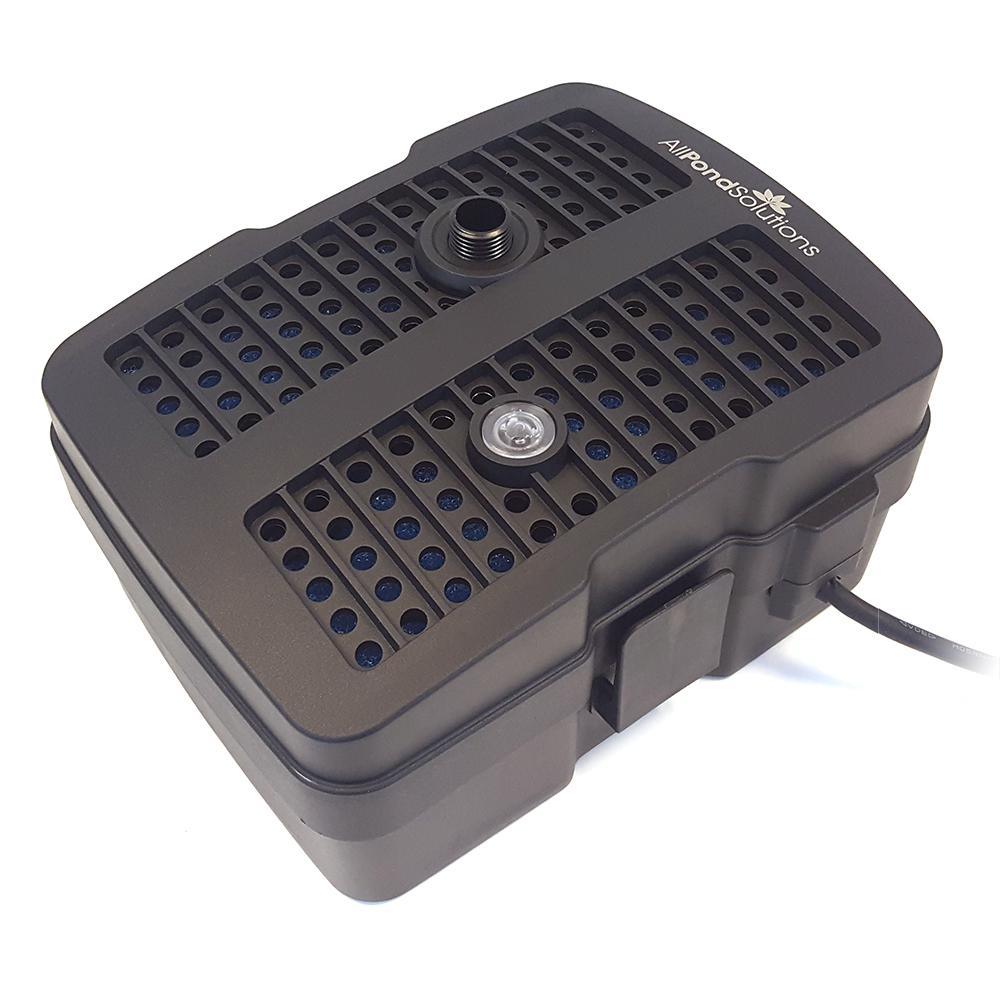

AllPondSolutions 1000L/H All In One Pond Pump Filter UV CUP-305

Fitting a conventional filter set-up around a small pond usually means finding somewhere to hide a box, running extra cable and disguising pipework in the planting. The CUP-305 removes that whole exercise: pump, filtration and a 5w UVC lamp are built into one unit driven by a single power cable, so installation is far simpler than a standard pond set-up and there is no separate external filter to buy.

Its 1000 litres per hour pump keeps a compact ornamental pond turning over and, with the UV in circuit, keeps it algae-free.

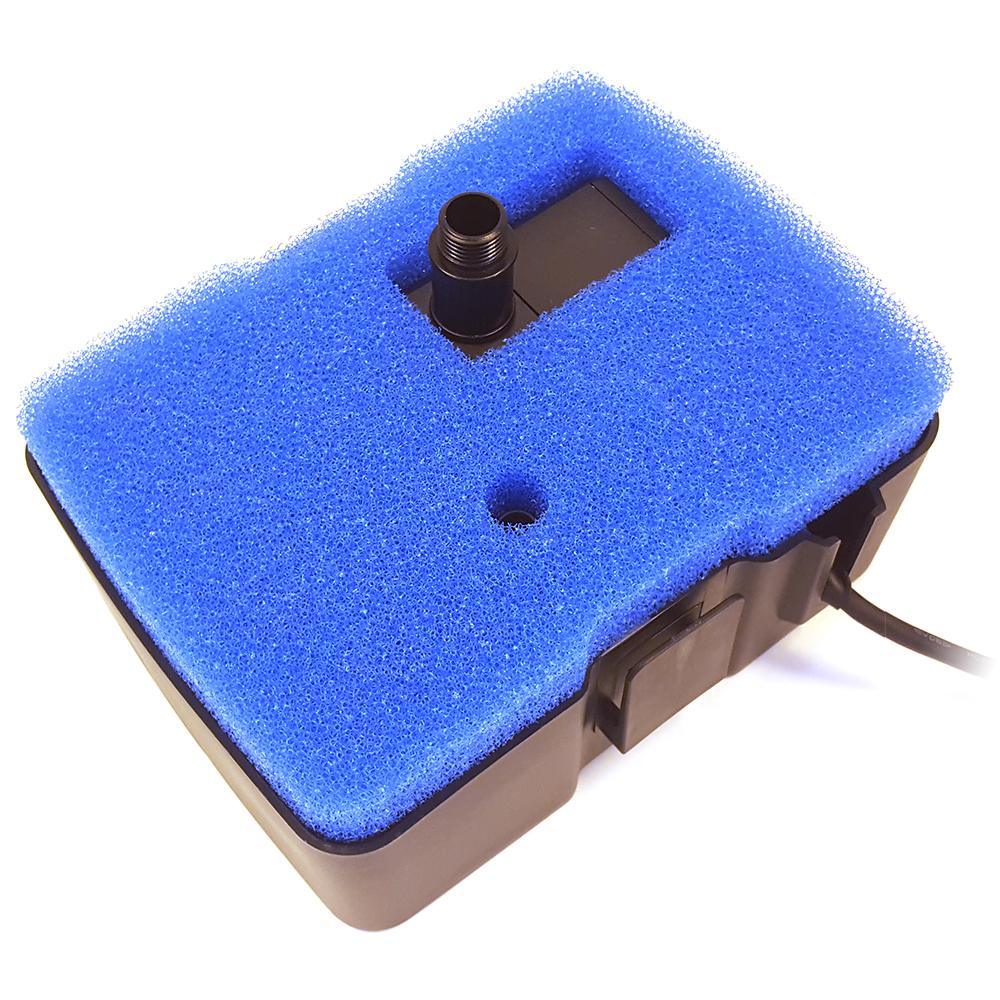

Media is arranged in stages. Water first meets a large coarse filter foam, then reaches two filter media compartments — one packed with ceramic biological filter media, the other with K1 filter media. Neither compartment is fixed to that choice; you can substitute an alternative pond filter media of your own if you prefer.

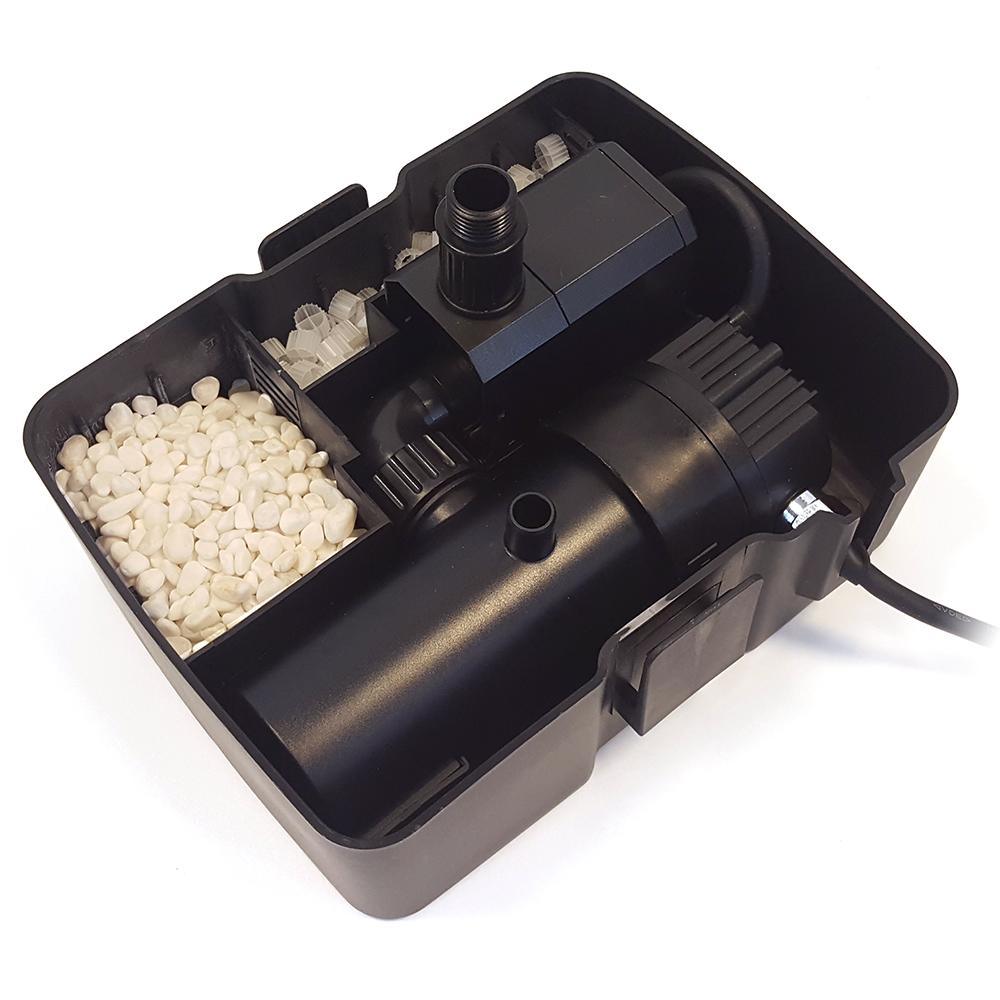

Two clips, one on each side of the casing, are all that stand between you and the inside of the unit. Release them and every media area is open for cleaning and maintenance. The pump and steriliser lift out as well, so they can be cleaned completely clear of the CUP-305 base.

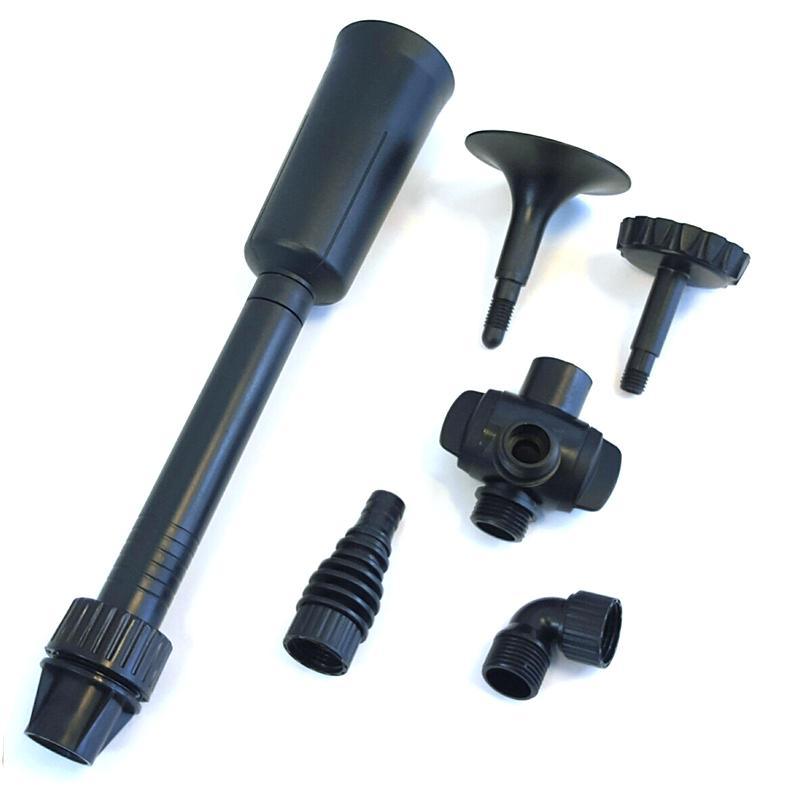

A high-quality fountain attachment set is supplied, with three different fountain attachments for different display shapes, plus a splitter for diverting water to a waterfall or other feature. Splitter and fountain are both flow-rate adjustable, so fountain strength and the volume sent away from the unit stay entirely under your control.

Operation

1. Pond water is pulled through the casing of the system directly through the coarse filter foam.
2. Before entering the UV the water must pass through the ceramic biological media baskets.
3. The water is then passed over the 5w UV Light.
4. It leaves via the supplied fountain and / or external feature, or simply back into your pond.

Features

• For use in ponds up to 2000L (Ornamental)
• For use in ponds up to 1000L (Small mix of fish)
• Water pump Included
• UV steriliser Included
• Pond filter Included
• Spare impeller / shaft replacement included
• Water fountain set included (3 different heads)
• Water fountain has angle-adjustment Feature
• Coarse filter foam, ceramic stones and K1 media included
• Adjustable flow-rate T-connector included
• UV On/Off light indicator on top of casing
• Case guards stop debris larger than 7mm entering the unit.
• Instruction manual in English, French, German, Spanish and Italian
