AllPondSolutions Koi Pond Filter Kit 12000L / 36w UV / AQUAECO-10000

Doubling the filter bays is the straightforward way to handle a pond that has outgrown a single box, and that is the principle behind this 12000L koi system. Two separate bays share the load, letting a variety of filter media treat high volumes of water and keep the pond looking crystal clear.

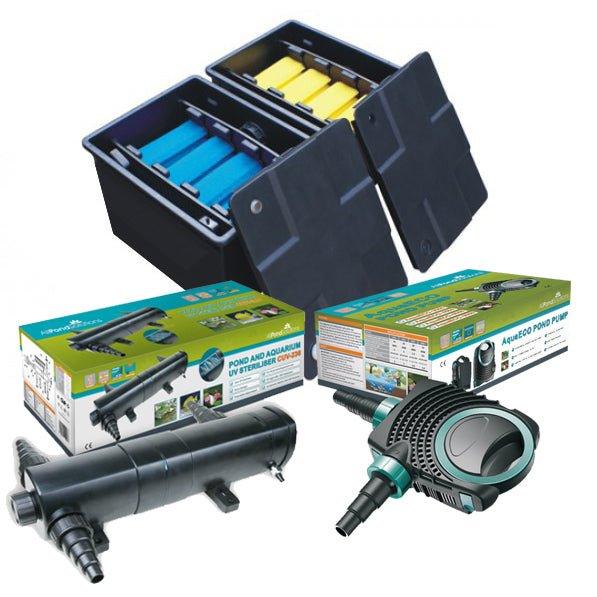

The system is supplied complete: a CBF-350B dual filter box, a CUV-236 36w steriliser that mounts on the side of the box or can be positioned close by, and an AQUAECO-10000 pump moving 10000 litres per hour.

Filter Operation

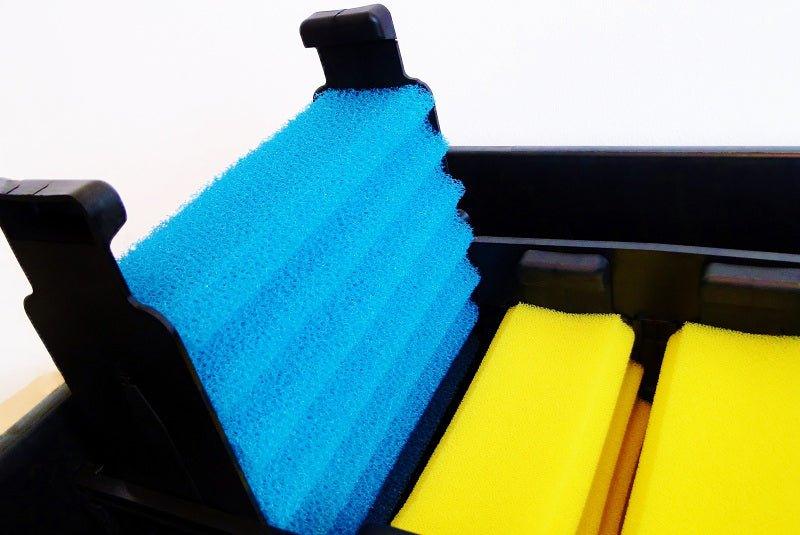

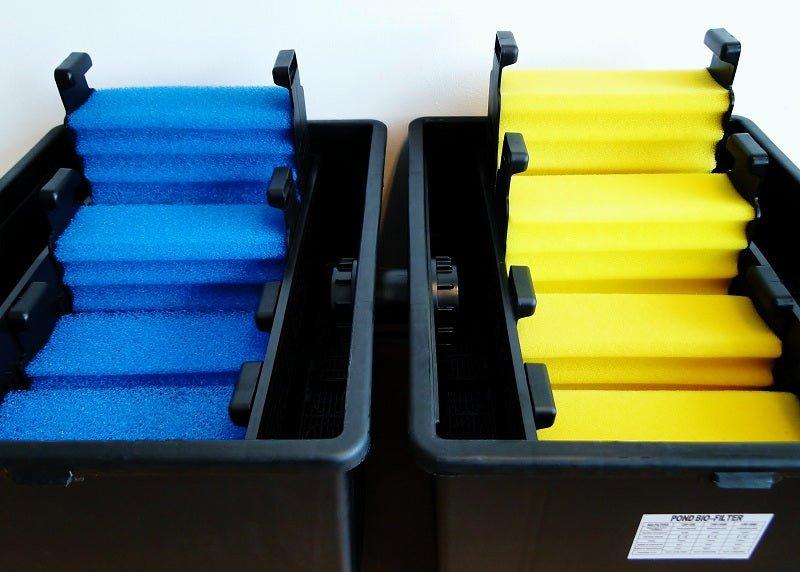

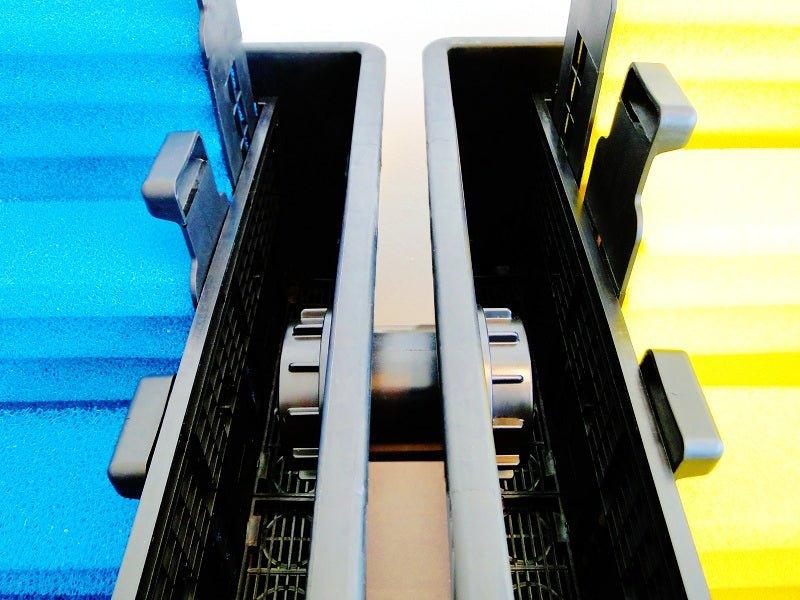

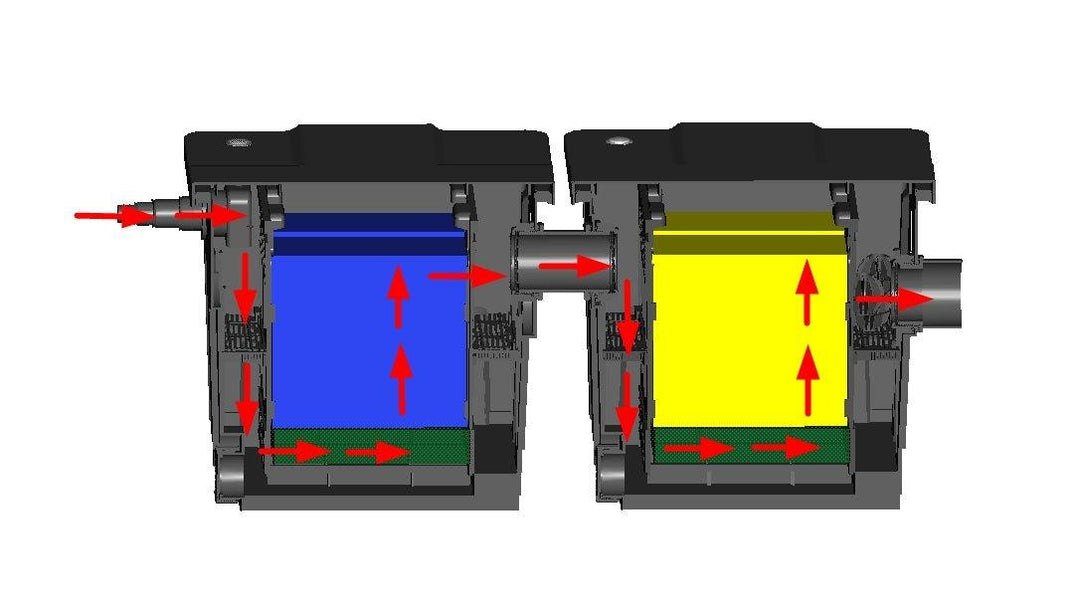

Each of the 2 bays has 4 different stages of filtration (see below). The first bay comes complete with four (4) Blue Coarse Filter Foams, and the remaining bay has four (4) Yellow Fine Filter Foams included.

1. Firstly, the water passes through the filter media bay (stocked with media of your choice)

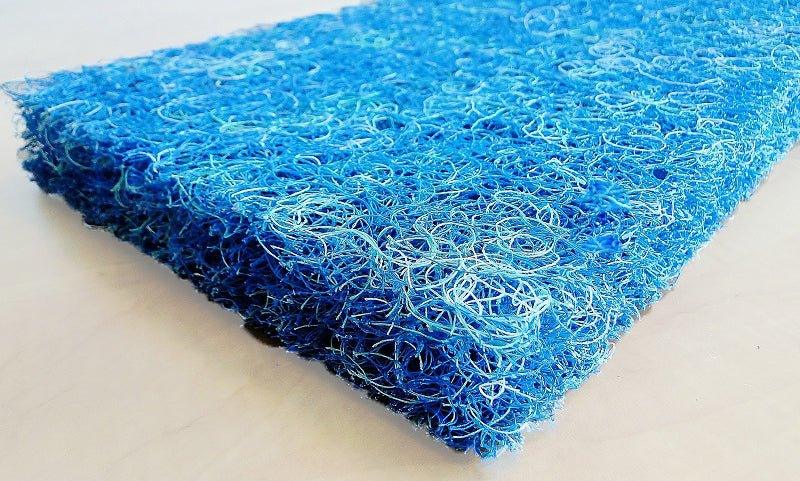

2. Then the water is guided through high-quality Japanese matting;
3. After matting, the water will flow through the filter foams provided;
4. The last section of each filter bay has additional room for filter media.

Please note the filter must be placed on the edge of the pond as the clean water flows straight back into the pond not an outlet pipe

An additional cleaning tool comes with this model, allowing you to rinse through your foams without even removing them from your filter box.

Features

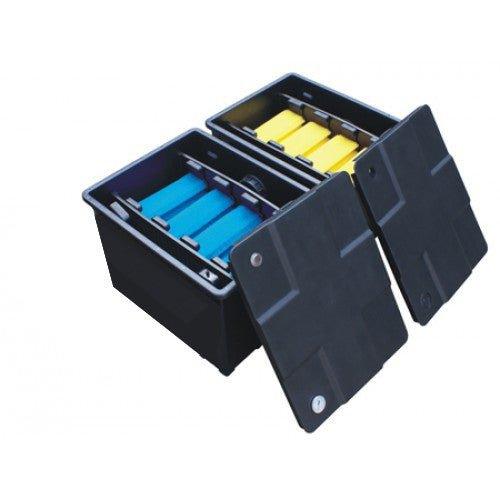

• 1 x Dual Filter Box
• 2 x Clip-on Lid

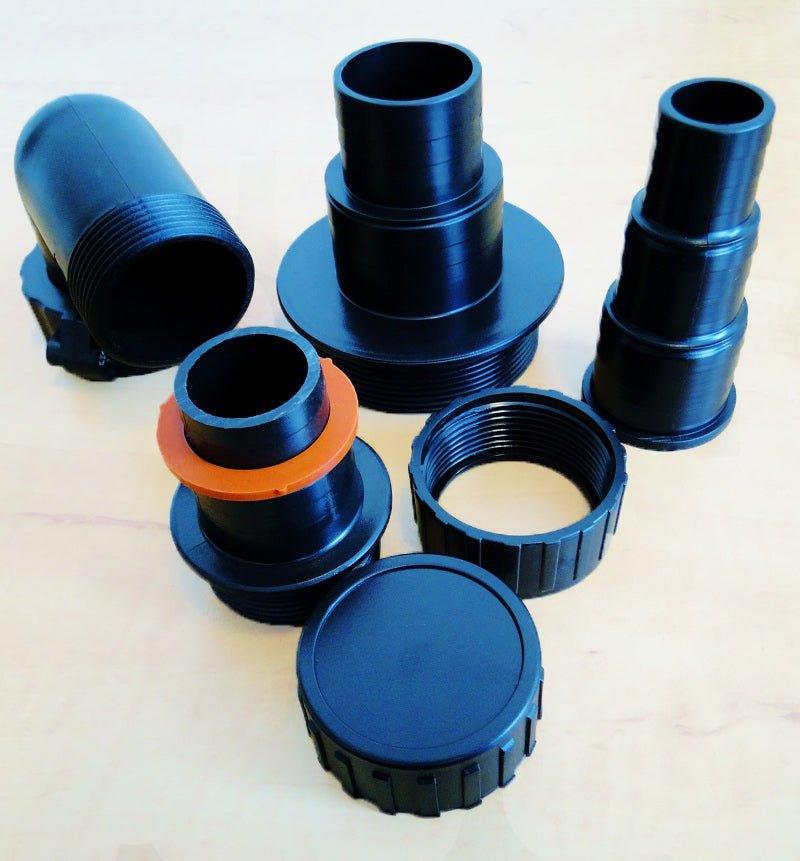

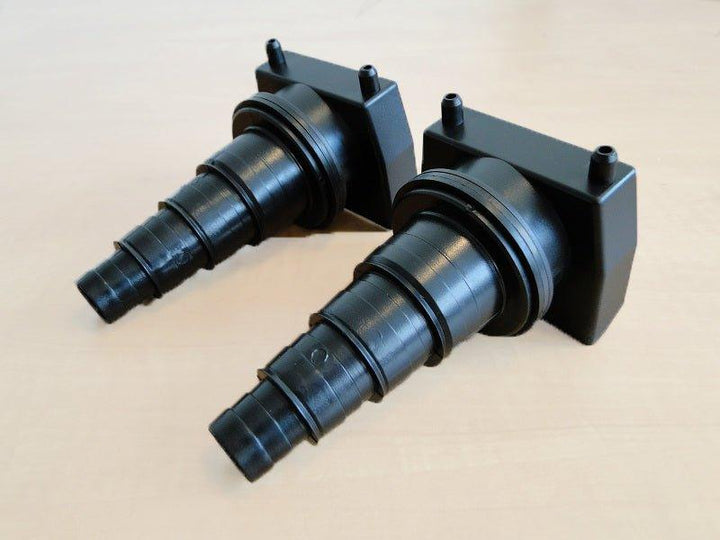

• 2 x Inlet stepped hosetails fits hose size: 20, 25, 32 & 38mm
• 2 x Outlet Pipes one fitted 70mm and 1 stepped fits 38mm and 50mm Pipe

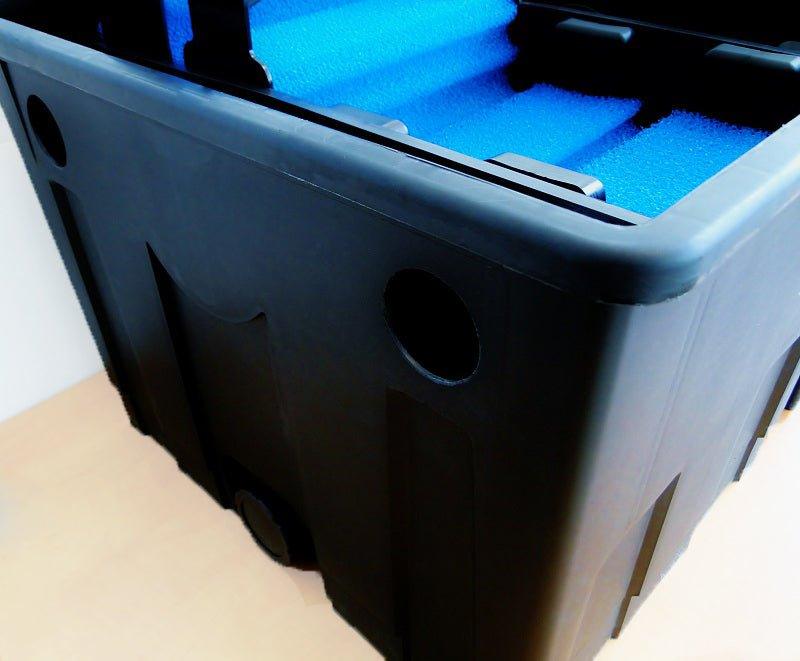

• 2 x Waste Pipe per Box (for easy draining of water waste)

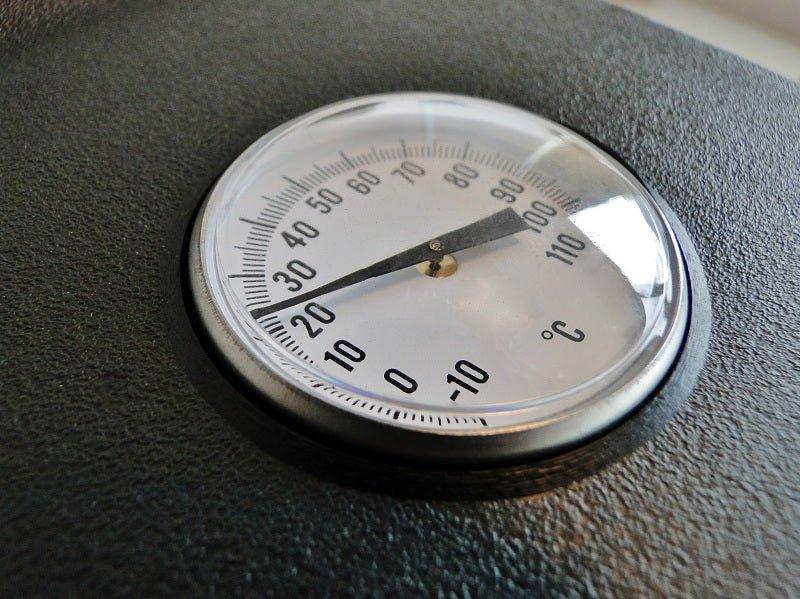

• 1 x Temperature Dial Built into Lid

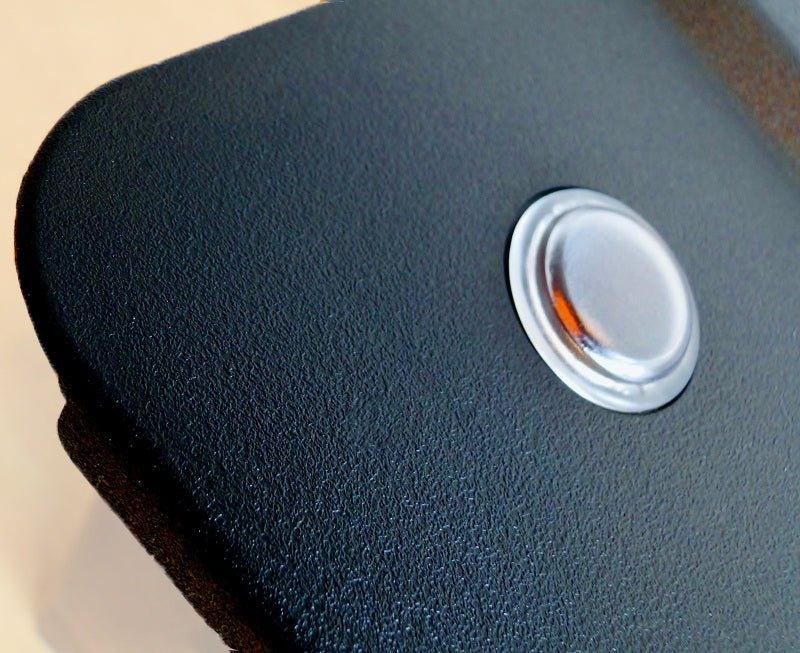

• 1 x Water Level Indicator Built into Lid (Ideal for Blockages / Cleaning)

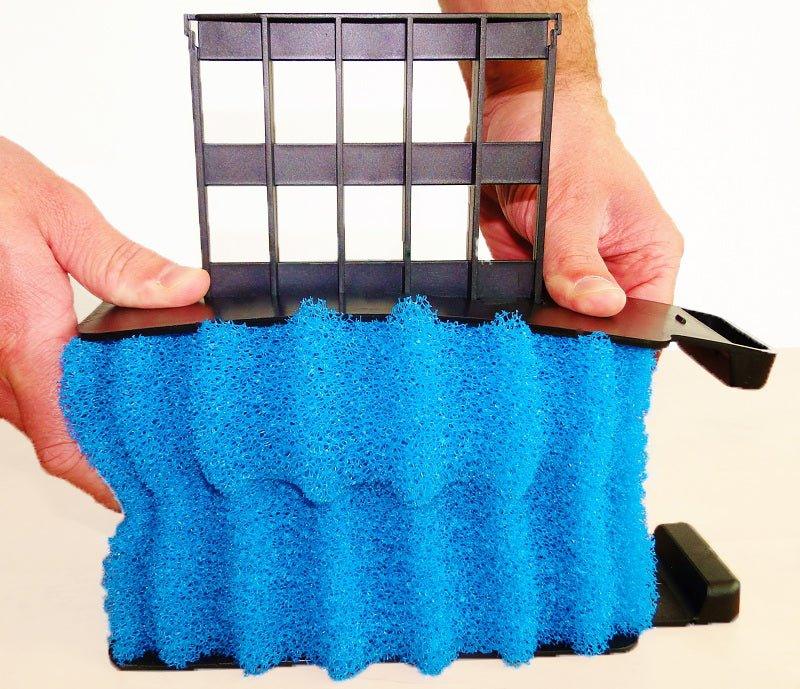

• 4 x Blue Foams (Coarse Grade Foam)

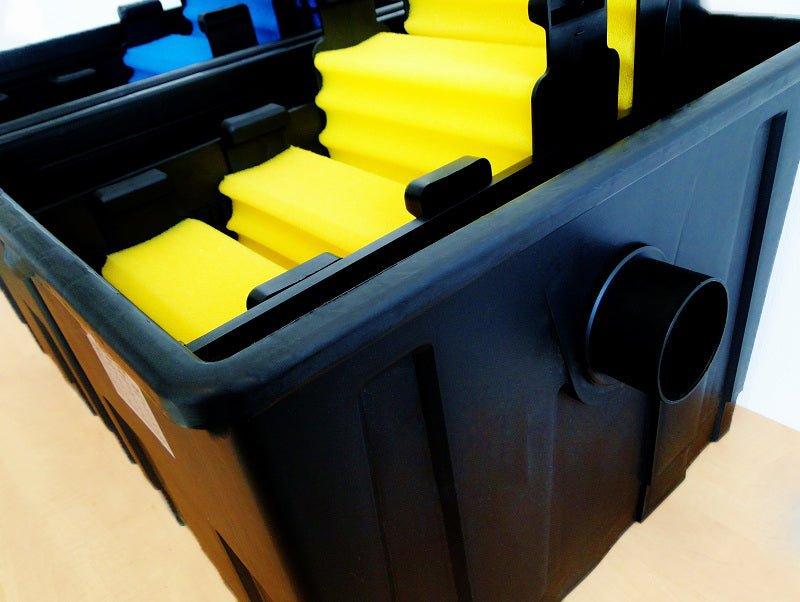

• 4 x Yellow Foams (Fine Grade Foam)

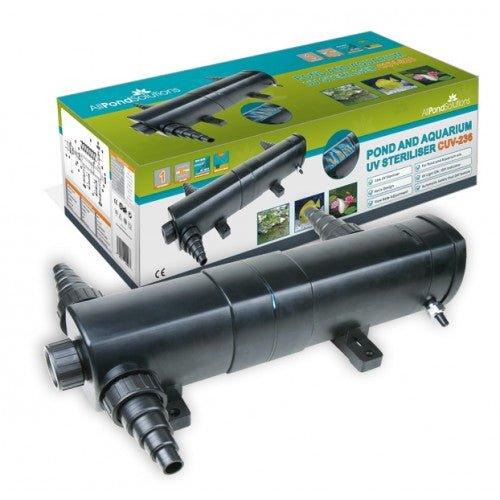

CUV-236 UV Steriliser

• CUV-236 Centre Panel Lights-up to Ensure that the UV is Operational
• Three Stepped Hosetails Supplied
• Wall Mounting Bracket Attached to the UV Light complete with Screws
• CUV-236 Easy Clip-release for Bulb / Quartz Glass Maintenance
• CUV-236 Advanced Thermal Heat Protection Built-in

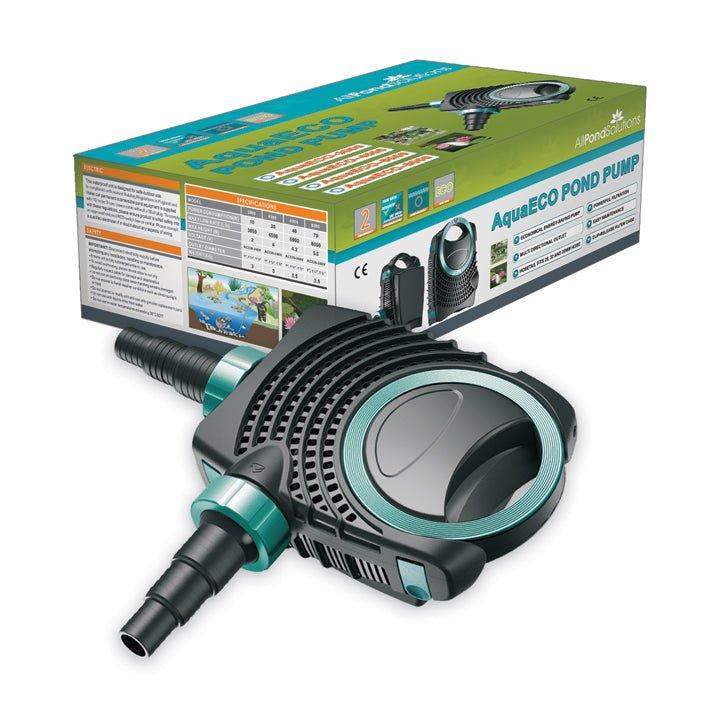

AQUAECO-10000 Pond Pump

• High water flow with low energy consumption for energy conscious and environmentally friendly operation.
• Designed to pump dirty water 24/7
• High-quality impeller and ceramic shaft for problem free transport of dirt particles.
• Robust filter housing minimises the risk of blockage and makes installation and maintenance easy.
• Unique cage design incorporating convenient handle for easy placement / retrieval
• Cage design allows for easy access for quick hassle free maintenance
• Inlet / Outlets can be angled to your requirements for a simple installation
• Inlet / Outlet hosetail connector: 25/32/38mm
• Power Cable: 10m
