18000L Pond Box Filter Pond Pump 36w UV ,Hose/Clips

Koi are heavy waste producers, and a pond stocked with them will outrun a modest filter within a season. This AllPondSolutions 18000L Koi Pond Filter System answers that with complete box filtration: pond water is drawn through a sequence of filter media plus coarse and fine foams, and returned crystal clear.

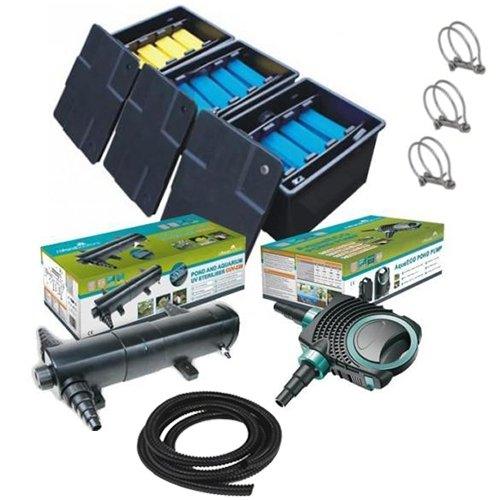

Everything needed arrives together - the CBF-350 filter box, a CUV-236 36w steriliser that attaches to the side of the box (or can be positioned close by), and an AquaECO 10000 pond pump rated at 10000 litres per hour. The kit is completed by 3x double wire clips and 10 metres of 32mm flexible hosing.

Filter Operation

Inside the filter bay, media is distributed across separate compartments so that high volumes of water can be processed at once. Two (2) blue coarse filter foams and two (2) yellow fine filter foams are included with this single bay system.

Water passes through four stages in turn:

1) Into the filter media bay first, which you stock with media of your choice
2) Onward through high-quality Japanese matting
3) Next through the filter foams provided
4) Finally into a further section of the bay with room for additional filter media

Please note the filter must be placed on the edge of the pond as the clean water flows straight back into the pond not an outlet pipe

Features

• Filter Bays x 3
• Clip-on Lids x 3 for Easy Access to each Filter Bay
• 2 x Inlet stepped hosetails fits hose size: 20, 25, 32 & 38mm
• 2 x Outlet Pipes one fitted 70mm and 1 stepped fits 38mm and 50mm Pipe
• 3 x Waste Outlet for each Bay (Simple Draining of Water Waste)
• 1 x Temperature Dial Built into Lid
• 1 x Water Level Indicator Built into Lid (Blockage / Cleaning)
• 8 x Blue Coarse Filter Foams
• 4 x Yellow Fine Filter Foams

Specifications

• 3 x Japanese Matting supplied (Dimensions: 440 x 230mm - 40mm thickness / 17.3" x 9.1" - 1.6" thickness)
• 20 x 1.75" / 44mm Bio Balls (Approx)
• Maximum Flow Rate: 10000L/H
• Suitable for Ponds with Heavy Stocked Koi up to: 10000 Litres
• Suitable for Ponds with Small Mix of Fish and Koi up to: 14,000 Litres
• Suitable for Decorative Ponds up to 18000 Litres volume
• Total Dimensions: 1260 x 520 x 390mm / 49.6" x 20.5" x 15.4"
• Bay Dimensions: 410 x 520 x 390mm / 16.1" x 20.5" x 15.4"

AquaECO 10000 Pond Pump

Features

• Energy efficient, power saving pump
• Built from high-quality durable ABS particles
• Rust-proof ceramic shaft of high quality
• Stepped hosetails fits hose size: 20, 25, 32 & 38mm
• Submersible use only

AquaECO 10000 Specifications

• Height Max: 5 Metre
• Flow Rate: 10000 L/H
• Power: 80w
• Voltage: 240v
• Dimensions: 310 x 310 x 165mm / 12.2” x 12.2” x 6.5”
• Cable Length: 10 Metre

CUV-236 UV Steriliser

Specifications

• Power: 36W
• Suitable for Pond sizes up to 20,000 Litres
• Through Flow Sterilisation at 6000 L/H
• Length of UV Case 54 cm / 21.3"
• UV Bulb Included (1 x 36w)
• Max Pressure(bar) 0.3 90 %
• Power Cable 5m Length
• Inlet & Outlet Adapter 0.75", 1", 1.25", 1.5" / 19mm, 25mm, 32mm, 38mm
