AllPondSolutions Complete Koi Box Filter System FPP 4500L/H Kit

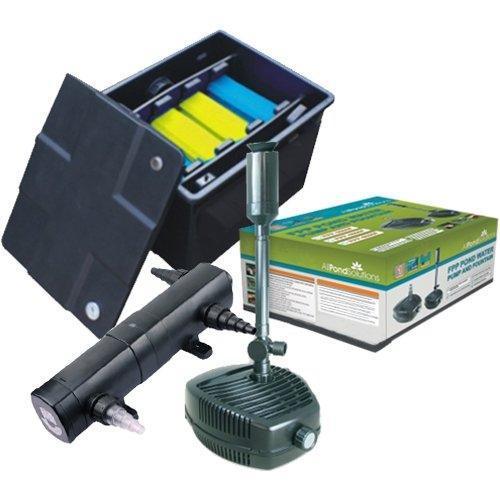

Assembling a koi filtration setup piece by piece invites mismatched components. This complete system arrives matched: the CBF-350 filter box, a CUV-218 18w steriliser that mounts on the side of the box or sits close by, and an FPP pond pump rated at 4500 litres per hour. Between them they run pond water through a variety of filter media plus fine and coarse foams to keep a 6000L pond looking crystal clear.

Filter Operation

Media is spread across separate compartments inside the filter bay so high volumes of water can be treated. This single bay filter system includes two (2) blue coarse filter foams and two (2) yellow fine filter foams, and water moves through four stages:

1. Firstly, the water passes through the filter media bay (stocked with media of your choice)
2. Then the water is guided through high-quality Japanese matting;
3. After matting, the water will flow through the filter foams provided;
4. The last section of the filter bay has additional room for filter media.

Please note the filter must be placed on the edge of the pond as the clean water flows straight back into the pond not an outlet pipe

Features

• 1 x Filter Box
• 1 x Clip-on Lid
• 1 x Japanese Matting (Dimensions: 440 x 230mm 40mm Thickness / 17.3" x 9.1" x 1.6" Thickness)
• 1 x Waste Pipe (Easy Draining of Water Waste)
• 1 x Temperature Dial Built into Lid
• 1 x Water Level Indicator Built into Lid (Blockages / Cleaning)
• 2 x Blue Foams (Coarse Grade Foam)
• 2 x Yellow Foams (Fine Grade Foam)
• 20 x 1.75"/ 44mm Bio Balls (Approx)

CUV-218

• CUV-218 Centre Panel Lights-up to Ensure that the UV is Operational
• Three Stepped Hosetails Supplied
• Wall Mounting Bracket Attached to the UV Light complete with Screws
• CUV-218 Easy Clip-release for Bulb / Quartz Glass Maintenance
• CUV-218 Advanced Thermal Heat Protection Built-in

CUV-218 PDF Operation Manual Download

FPP 4500 Pond Pump

• Max Height: 350cm / 138"
• Flow Rate: 4500L/h
• Outlet fits 25mm Flexible Hose (multi-stage hosetail also supplied can fit 20-38mm)
• Dimensions: 267 x 223 x 132mm
• 10m of Cable
• Watt: 75w
• Voltage: 220-240V
